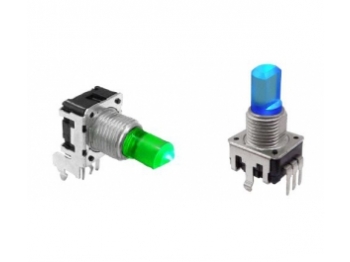

12mm 附LED迴轉式可變電阻器
FEATURE
‧Outset molding with resin around the resistor prevents flux build-up.
‧Red、green、blue and orange LED colors are available.
APPLICATIONS
‧Ideal for volume, tone and balance control of car audio equipment.
COMMON SPECIFICATIONS
| Model |
RD12S- Single Color |
RD12S- Two Color |
RD12S- Three Color |
| Total resistance (KΩ) |
5、10、20、50、100、250 |
| Total resistance tolerance |
±20% |
Resistance taper
|
A、B、C、D、E、K、W |
| Rated power |
0.05W |
| Maximum operating |
50V AC 10V DC |
| Total rotational angle |
300±5˚ |
| Rotational torque |
10~100gf.cm |
50gf.cm Max |
50gf.cm Max |
| Rotation stopper strength |
3Kgf.cm |
| Rotation life |
30,000 cycles |
| Switch rating |
— |
D.C.5V 10mA |
D.C.5V 10mA |
| Switch cntact resistance |
— |
100 mΩ Max |
100 mΩ Max |
| Switch operating method |
— |
Push type |
Push type |
| Switch contact arrangement |
— |
Push on |
Push on |
| Switch stroke |
— |
0.3 (±0.15) mm |
0.3 (±0.15) mm |
| Switch strength |
— |
450±200 gf |
450±200 gf |
| Switch life |
— |
20,000 cycles |
20,000 cycles |
PRODUCTS NUMBERING SYSTEM
LED SPECIFICATIONS
STANDARD DIMENSION OF SHAFT AND BUSHING
DIMENSIONS
