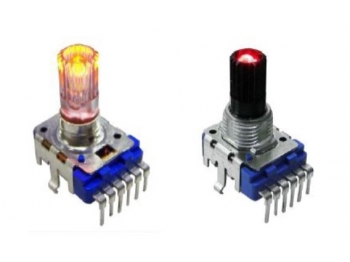

12mm LED埋入型迴轉式可變電阻器
Features
Specification
FEATURE
‧Outset molding with resin around the resistor prevents flux build-up.‧Red、green、blue and orange LED colors are available.
APPLICATIONS
‧Ideal for volume, tone and balance control of car audio equipment.
產品說明
COMMON SPECIFICATIONS
| Characteristics | Specification |
| Model | RD12G |
| Total rotational angle | 300±5˚ |
| Rotational torque | 30~250gf.cm |
| Rotation stopper strength | 5Kgf.cm |
| Push pull strength | 8Kgf Max |
| Total resistance | 5.10.20,50,100,250(KΩ) |
| Total resistance tolerance | ±20% |
| Rated power | 0.05W |
| Maximum operating | 50V AC 10V DC |
Resistance taper |
A,B,C,D,E,K,W |
Insulation resistance |
100MΩ Min. 250V DC |
Withstand voltage |
1 minute 300V AC |
| Rotation life | 15,000 cycles |
PRODUCTS NUMBERING SYSTEM
DIMENSIONS
| Emitted color | |
|
|
|
Single color LED |
Two colors LED |
| Red | Blue / Orange |
| Lawngreen | Red / Lawngreen |
| Blue | Blue / Lawngreen |
Orange |
|
| White |
|
| Dark orange |
|
STANDARD DIMENSION OF SHAFT AND BUSHING
| Knurled Shaft | Knurled Shaft With Bushing | Shaft angle |
 |
 |
 |
DIMENSIONS
Unit:mm
| Clear shaft, single unit With single color LED RD12G1KV  |
 |
|
| Black shaft, single unit With single color LED RD12G1BV  |
 |
|
| Clear shaft, single unit With dual color LED RD12G1KV  |
 |
|
| Black shaft, single unit With dual color LED RD12G1BV  |
 |
|
| Clear shaft, single unit With Bushing and single color LED RD12G1KV  |
 |
|
| Black shaft, single unit With Bushing and single color LED RD12G1BV  |
 |
|
| Clear shaft, single unit With Bushing and dual color LED RD12G1KV  |
 |
|
| Black shaft, single unit With Bushing and dual color LED RD12G1BV  |
 |
|
