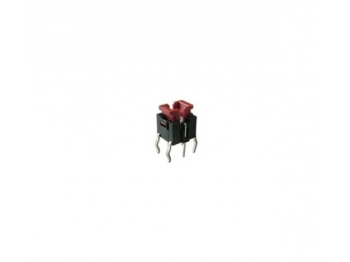

SFK(N)HJA

Introduction

SFK(N)HJA
DIP Type, 高度 7.15mm.
輕觸開關
/ TV / Monitor / Game Player / Instrument

FEATURE
‧Super bright LED.
‧Various LED colors.

APPLICATIONS
‧ Server、Laptop、IPC、Set-top box etc.



Inquire Now

SFK(N)HJA

Features

Specification

COMMON SPECIFICATIONS

Characteristics Specification
Operating temperature range -20℃ to +70℃
Operating force 100、160、260gf
Travel 0.25mm
Dimension 6.7 * 7.0 * 7.15mm
Operating life 100,000 cycles
Stopper strength 3 Kgf / 60 sec
Maximum ratings DC12V 50mA
Insulation resistance 100MΩ min
Voltage proof 1 minute 250V AC

DIMENSIONS

Unit:mm
Model Dimensions
SFKHJA SERIES
PC board t=1.0 or 1.6mm
Mounting Dimension		 Circuit Diagram
